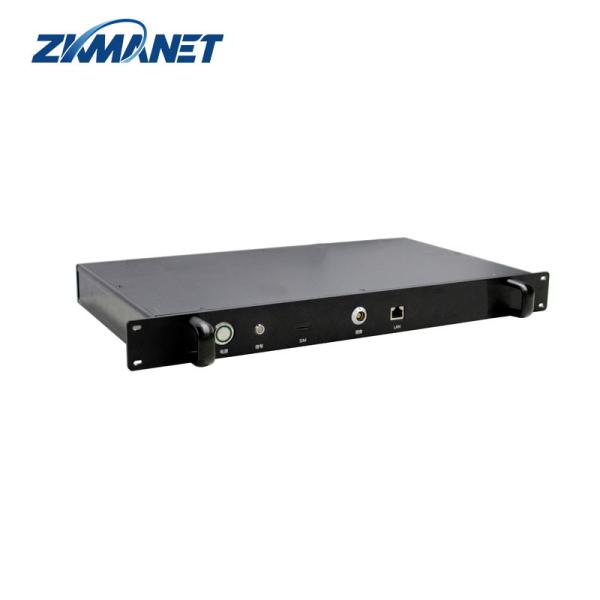

1.4Ghz 1U Vehicle Mounted MESH Video Transmitter And Receiver with 40dBm Power and 82Mbps Data Rate

Product Description

ZKManet2371UM is a very flexible mesh rack-mounted product, which can be used in different usage scenarios by adopting a variety of communication combinations. It can be installed at a fixed point, and can also be used on mobile vehicles, ships, etc. It can be used anytime, anywhere, with one key on, without configuring and changing parameters. It is mainly used to realize the multimedia interconnection between vehicle and vehicle, and between ship and ship.

Features

1U rack mount design

Supports 4G network

Supports LAN and HDMI inputs

Supports WiFi and GPS/BD

Supports voice intercom

High bandwidth up to 82Mbps

Full IP duplex transparent data transmission

Flexible networking and rapid deployment

Convenient operation and maintenance

Product Parameters

Item No.	ZKManet2371UM	Band	ZKMANET
RF Parameters	Working Frequency	1.4GHz, (300MHz-3.8GHz Customizable)
	Working Bandwidth	5/10/20/40MHz
	RF Channel	2T2R
	Output Power	2*5W
Network Parameters	Nodes	64
	Throughout Rate	82Mbps
	Encryption	AES
	Public Network	4G/5G Full Netcom
	WIFI	2.4GHz
	Coverage Distance	20-40KM(line-of-sight)
Physicals/Environment	Dimension	483*250.5*45mm(1U)
	Weight	4.3kg
	Working Temperature	-40ºC~+65ºC
Electrical Characteristics	Power Supply	DC24V
	Power Consumption	<60W
Other	Position	Support
	Intercom	Support
	Network port	Support

Detailed Photos

• 1. Power push button
• 2. MESH signal indicator
• 3. Micro SIM card slot
• 4. Mic input - LEMO 7-pin
• 5. LAN input

• 1. MESH antenna interface 1 - N F
• 2. MESH antenna interface 2 - N F
• 3. GPS antenna interface
• 4. 4G antenna interface
• 5. HDMI input interface
• 6. WIFI antenna interface
• 7. LAN input
• 8. DC input - 24V
• 9. AC input - 220V
