| Brand Name : | ZKMANET |
| Model Number : | ZKManet2951 |
| Certification : | CE, ISO9001 |
| Price : | USD 6099～6499 per piece |
| Payment Terms : | T/T,Western Union,MoneyGram |
| Supply Ability : | 10000 pieces per year |
| Delivery Time : | 3-7 work days |

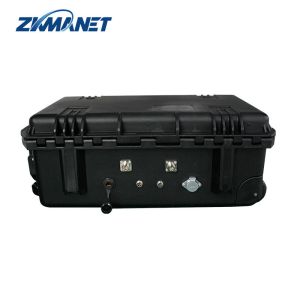

Long Range Wireless Video Transmitter And Receiver Rack Mounted AES 256 Mesh
* Large bandwidth: It adopts universal hardware platform, software radio
architecture, supports dynamic loading and unloading waveforms, and
online configuration of working parameters according to actual
channel conditions and changes in user status to ensure large
bandwidth transmission.
* Self-organizing network: the MESH wireless network does not rely on the base station, has
the excellent characteristics of self-organizing network,
self-management, self-repair and self-balancing, supports
multi-point hopping, and meets the non-line-of-sight conditions of
network transmission.
* Multi-service: support real-time voice intercom, intelligent device access,
webcam access, with 4G Internet access.
* All-IP: adopting all-IP transparent data transmission, supporting
end-to-end Internet protocol, it can be conveniently connected with
higher-level network system, constituting a variety of specialized
command application systems, and can also be connected to the
public infrastructure network.
* Self-developed: with complete core technology and intellectual property rights,
it can be quickly customized according to users' needs, with small
size, flexibility and simple deployment.
Features
* Frequency 580MHz (300MHz-1.5GHz customizable)
* large bandwidth, up to 70Mbps rate
* line-of-sight transmission distance 10-20 kilometers
* Self-organized network size of not less than 32 units, relay
capacity of more than 9 hops bidirectional high-definition video,
voice, data transmission
* All-IP node, standard Ethernet interface protocol, IP data
transparent transmission
* Centerless self-organizing network, automatic path selection,
flexible networking mode, easy to use
* Multi-hop to expand the coverage area, expand the coverage
distance with 4G and WIFI, support intelligent equipment access
* Strong anti-jamming, good bypassing properties
| Host Features | |
| Operating System | WIN7/64-bi |
| CPU | Intel I5 processor |
| Display | 15.6-inch high-definition bright screen |
| RAM | 8G |
| Storage | 120G SSD |
| Operation Mode | Embedded Mouse and Keyboard |
| Transmission Characteristics | |
| Frequency range | 1438MHz (300MHz-1.5GHz customizable) |
| Channel bandwidth | 5M/10M/20M (adjustable) |
| Transmit Power | 33dBm(MAX) |
| Constellation map modulation | BPSK/QPSK/16-QAM (adaptive) |
| Forward Error Correction Code | 1/2,2/3,3/4,5/6(adjustable) |
| Digital sensitivity | 93dBm@5MHz(MAX) |
| Transmission rate | 70Mbps(MAX) |
| Networking capability | Self-organizing network hops more than 9 hops, the number of self-organizing network nodes is not less than 32 units |
| Data Characteristics | |
| RF interface | N*2,SMA*2 |
| Video display | 15.6-inch high-definition bright screen |
| Network cable interface | RJ45 waterproof interface |
| Intercom interface | 7-core Remo head |
| Video Output | HDMI |
| Power supply interface | 3-pole aviation header |
| 4G Function | Full Netcom |
| Signal Indicator | 1 dual-color signal indicator |
| Power switch | Self-reset switch with light |
| Encryption | AES 256 |
| Electrical Characteristics | |
| Working voltage and current | DC 12 V,≤ 3A |
| Power consumption | Average power consumption of the whole machine 337dBm |
| Battery capacity | 15.6AH |
| Functional Characteristics | |
| Signal Indicator | 1 two-color signal indicator, communication link smooth display green, communication is about to enter the link interruption state intermittent red and green flashing, communication link is not smooth display red |
| Intelligent Configuration | One-touch operation, no need to configure and change parameters. |
| Physical Characteristics | |
| Operating temperature | -20~+55ºC |
| Storage Temperature | -40ºC~ +65ºC |
| Dimension | 577*353*211mm |
| Weight | 14.8kg(including battery) |
| IP rate | IP65 |
