| Brand Name : | ZKMANET |
| Model Number : | ZKManet2271UM |
| Certification : | CE, ISO9001 |
| Price : | USD 5599～6299 per piece |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 pieces per year |
| Delivery Time : | 3-7 work days |

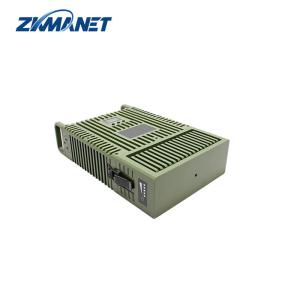

20~High Power Customizable 2T2R Backpack Wireless MESH Base Station with 82Mbps Data Rate
ZKManet2271UM is a high-power MESH self-organizing network radio with an integrated backpack design, providing a more stable emergency network and longer transmission distance in complex situations. The device comes with a data display screen, showing real-time device status and connection status. It can be worn by a single soldier, used as a relay with a tripod, or installed at fixed points. With a built-in lithium battery for power supply, the product features a sleek appearance, ease of use, powerful functionality, and high reliability.
* Supports two-way intercom
* Full transparent IP data transmission
* Supports 4G (with SIM card slot)
* Supports WIFI connection
* Supports GPS/BD
* Equipped with a display screen to show configuration information
and connection status
* Working time ≥4h
* Rugged IP66
* Easy to operation
| Model | ZKManet2271UM | Brand | ZKMANET |
| RF Parameters | Frequency | 1.4GHz (300MHz-3.8GHz Customizable) | |
| Bandwidth | 5/10/20/40MHz,20MHz (Typical) | ||
| RF Channel | 2T2R | ||
| Output Power | 20-High Power Customizable | ||
| Network Parameters | Network Size | 64 Nodes (128 nodes optional) | |
| Data Rate | 82Mbps | ||
| Encryption | AES | ||
| Public Network | 4G/5G | ||
| WIFI | 2.4GHz | ||
| Range | 10-20km (LOS) | ||
| Physical/Environment | Dimensions | 320*200*75mm | |
| Weight | 4.75kg (w/ battery) | ||
| Working Temp | -40ºC~+65ºC | ||
| IP Rating | IP66 | ||
| Electronic Parameters | Power Supply | 16.8V | |
| Battery Capacity | 13Ah | ||
| Power Consumption | <80W | ||
| Other | Data Display | Support | |
| Intercom | Support | ||
| Positioning | Support | ||
| SNR | Link Quality | Topology Color |
| SNR ≥ 17 | Excellent | Deep Green |
| 12 ≤ SNR < 17 | Good | Light Green |
| 7 ≤ SNR <12 | Fine | Yellow |
| 2 ≤ SNR <7 | Medium | Orange |
| -10 < SNR <2 | Bad | Red |
| SNR = -10 | Disconnected | N/A |
