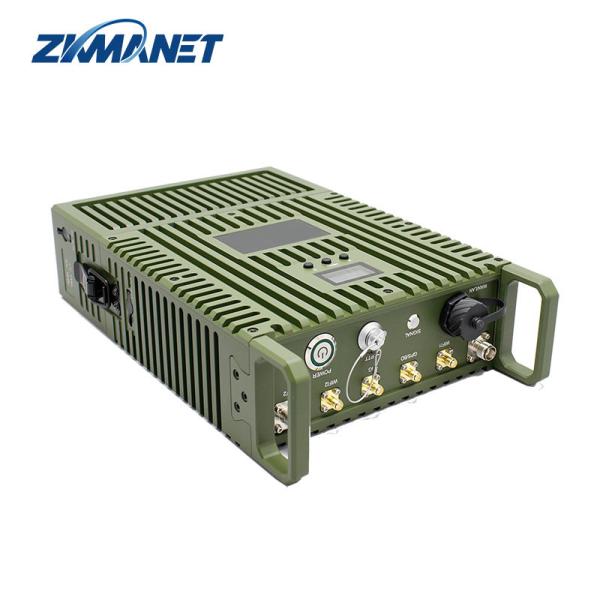

Backpack Ship Mounted Video Data Link MESH Communication System with High Power and 2T2R Channel

Product Description

The ZKManet2271UM is a high-power MESH self-organizing radio, customizable to 43dBm or High Power. The device features a display screen that shows real-time device status and connection information. It can be used as a portable unit for individual operators, set up on a tripod as a relay, or installed at fixed locations. Powered by a lithium battery, it offers over 4 hours of operational time. It supports various communication methods such as voice intercom, Wi-Fi, and 4G transmission. Its integrated backpack design ensures a more stable emergency network and extended transmission range in complex situations.

Product Parameters

Item No.	ZKManet2271UM	Band	ZKMANET
RF Parameters	Working Frequency	1.4GHz(300MHz-3.8GHz customizable)
	Working Bandwidth	5/10/20/40MHz, 20MHz(typical)
	RF Channel	2T2R
	Output Power	20-High Power customizable
Network Parameters	Nodes	64 nodes(128nodes as option)
	Throughout Rate	82Mbps
	Encryption	AES
	Public Network	4G/5G Full Netcom
	WIFI	2.4GHz
	Transmission Distance	10-20km(line-of-sight)
Physical/Environment	Dimension	320*200*75mm
	Weight	4.75kg(included battery)
	Working Temperature	-40ºC~+65ºC
	Protection Rating	IP66
Electrical Characteristics	Power Supply	16.8V
	Battery Capacity	13Ah
	Power Consumption	<80W
Other	Data Show	Support
	Intercom	Support
	Positioning	Support

Detailed Photos

• 1. Power push button
• 2. PTT (Mic)
• 3. MESH signal indicator
• 4. LAN interface, RJ45
• 5. Digital LCD indicator
• 6. Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
• 7. Battery Indicator
• 8. Battery butterfly clasp
• 9. MESH antenna interface-2
• 10. WIFI antenna interface-2
• 11. 4G antenna interface
• 12. GPS/BD antenna interface
• 13. WIFI antenna interface-1
• 14. MESH antenna interface-1

• 1. Battery charging port
• 2. Main body power input port

• 1. Battery +/- contacts
• 2. SIM card slot

Features

* Supports two-way intercom
* Full transparent IP data transmission
* Supports 4G (with SIM card slot)
* Supports WIFI connection
* Supports GPS/BD
* Equipped with a display screen to show configuration information and connection status
* Working time ≥4h
* Rugged IP66
* Easy to operation
