| Brand Name : | ZKMANET |
| Model Number : | ZKManet2532UM |
| Certification : | CE, ISO9001 |
| Price : | USD 5999 per piece |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 pieces per year |
| Delivery Time : | 3-7 work days |

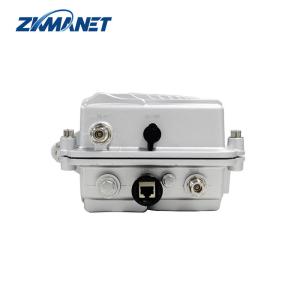

5.8GHz 2W IP67 High Definition Video Ground Base Station Wireless Transceiver
ZKManet2532UM is a high-performance, high-stability industrial-grade line-of-sight MESH ad hoc network product, through the combination of directional, omnidirectional, sector and other antenna types, to achieve point-to-multipoint or point-to-point and MESH ad hoc network and other types of wireless coverage networking, using anti-surge/electrostatic, anti-salt spray corrosion, EMC electromagnetic shielding, and other advanced industrial-grade design concepts, can meet all kinds of complex electromagnetic environment and harsh climate under all-weather uninterrupted work.
* Data rate up to 90Mbps
* Frequency 5.180~5.825GHz
* With WIFI hotspot
* Full duplex IP transparent transmission
* Flexible networking and rapid deployment
* Rugged IP67
* AES256
* Convenient operation and maintenance
| Model | ZKManet2532UM | |
| RF Parameters | Frequency | 5.8GHz |
| Bandwidth | 20/40/80MHz,20MHz(Typical) | |
| RF Channel | 2T2R | |
| Transmit | 2W | |
| Net Parameters | Nodes | 64 |
| Throughout | 90Mbps | |
| Encryption | AES | |
| WIFI | 5.8G | |
| Coverage Distance | 10-20km(LOS) | |
| Physical Parameters | Dimensions | 286*216*122mm |
| Weight | 3.2kg | |
| Temperature | -40ºC---+65ºC | |
| Protection | IP67 | |
| Electrical Characteristics | Power Supply | 12V |
| Power output | The average power consumption is less than 12W | |
