| Brand Name : | ZKMANET |
| Model Number : | ZKManet2452UM |
| Certification : | CE, ISO9001 |
| Price : | USD 1999~2999 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 pieces per year |
| Delivery Time : | 5~8 working days |
The ZKManet2452UM is a 4W UGV/Robot video data transmitter with powerful functions and stable performance using the leading MANET technology. It can form up an intelligent communication system with a remote control station, the video and data are encrypted during transmission. In application, it transmits on-site video and information (such as oxygen concentration and vehicle status, etc.) back to the control station.
| Transmission Characteristics | |
| Default Frequencies | 1400MHz-1480MHz (Or customize) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| Output Power | 36dBm (2x2W MIMO) |
| Modulation Type | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Encryption | AES |
| Interfaces | |
| RF | N*2, SMA*1 |
| Video Input | IP/CVBS/AHD/CVI*4 |
| LAN | RJ45*1, 4-PIN Aviation LINE*1 |
| Data | DATA1, DATA2, DATA3, IO1, IO2 |
| Intercom | 5-PIN Aviation Connector |
| Power | 3-PIN Aviation Connector |
| Electrical Characteristics | |
| Working Voltage | DC 12V |
| Power Consumption | <High Power Average |
| Physical Characteristics | |
| Weight | 2.4kg |
| Dimensions | 300*185*69mm |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -20ºC~70ºC |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |

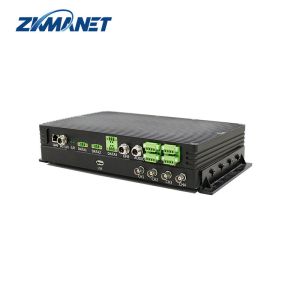

1. LAN interface, RJ45
2. Power input interface, 3-PIN aviation connector
3. S/R signal indicator
4. DATA1 - RS232 or RS485
5. DATA2 - PTZ control interface
6. DATA3 - CAN and sensor data interface
7. LAN interface, LINE
8. Audio
9. IO1
10. IO2
11. USB, for storage
12. CH1 - IPC or AHD camera input
13. CH2 - IPC or AHD camera input
14. CH3 - IPC or AHD camera input
15. CH4 - IPC or AHD camera input

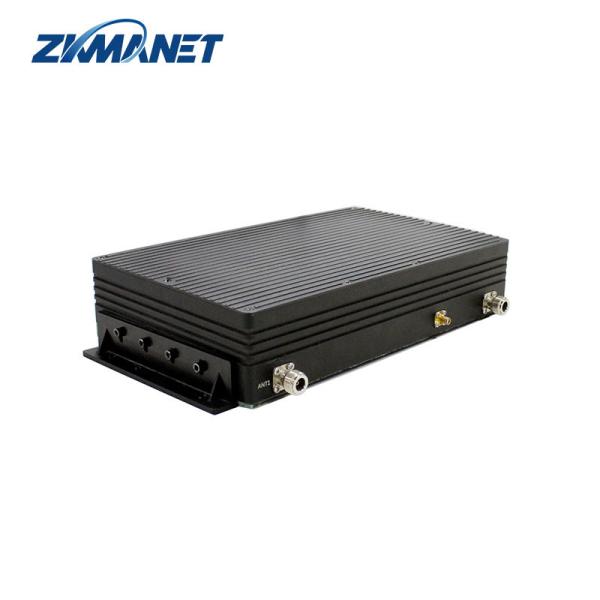

1. MESH antenna interface-1, N F
2. Reserved antenna interface for GPS/WIFI/4G-LTE, SMA F
3. MESH antenna interface-2, N F
We are a high-tech R&D enterprise. Our products mainly use Mesh
and LTE as core technologies and auxiliary decision-making software
to form underground building emergency communication systems, and
police investigation communication systems, and police non combat
training communication systems, urban emergency communication
systems, emergency communication vehicle communication systems,
etc., suitable for law enforcement forces and government
departments such as public security, armed police, , forest fire
prevention, civil air defense, and maritime. Especially the
intelligent communication products of special robots have solved
the long-distance communication and control problems of robots in
complex environments.
Zhongke Lianxun (Shenzhen) Co.,Ltd has multiple patents with
independent intellectual property rights, has established a sound
quality system and national standard system that comply with
ISO9001 standards, and strictly produces products in accordance
with national standards and internationally recognized standards
such as CCC, CE, FCC, etc. It has obtained the Radio Transmission
Equipment Model Approval Certificate issued by the Ministry of
Industry and Information Technology of China and has passed the
wireless product testing certification of the Ministry of Public
Security.
